Webhook trigger example- JIRA

This example demonstrates:

  • How to use a webhook trigger to start a Workforce Flow automatically when a task is performed in an external app. In this case when an issue is created or updated in JIRA.

  • How to convert the webhook payload to JSON.

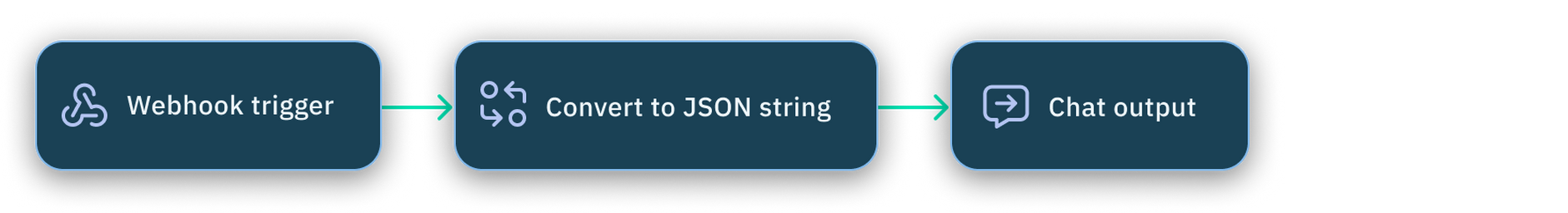

Webhook trigger flow overview Webhook trigger flow overview

Step 1: Setting up a content flow with a webhook trigger
Link copied!

  • Create a new content flow and give it a label and description.

  • From the Action Library open the Automated triggers and drag a Webhook trigger to your flow.

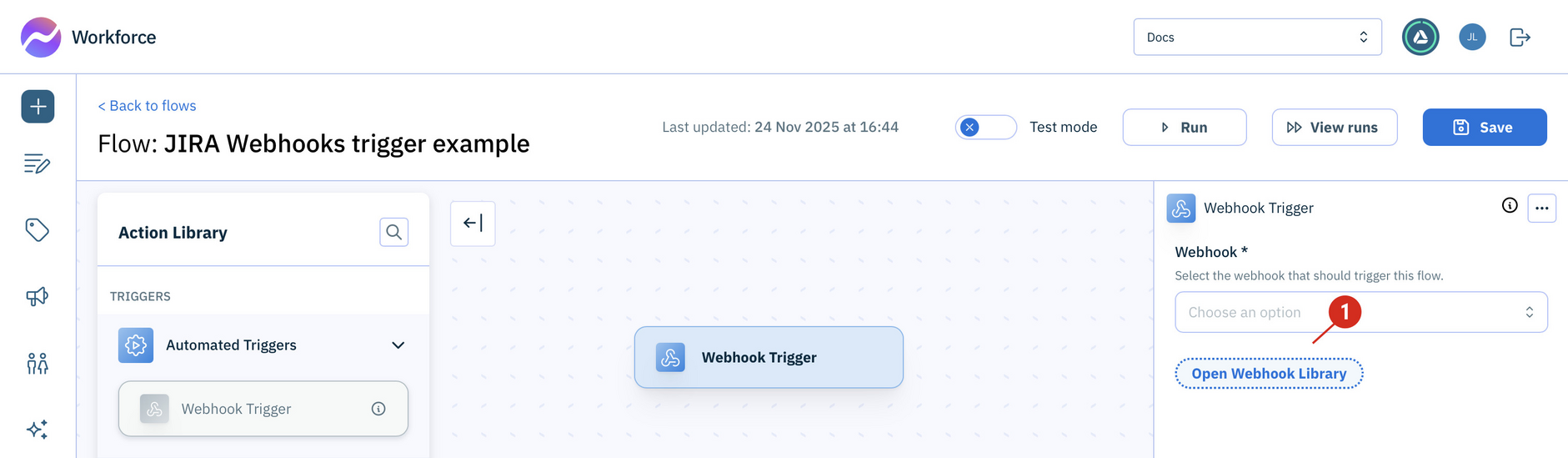

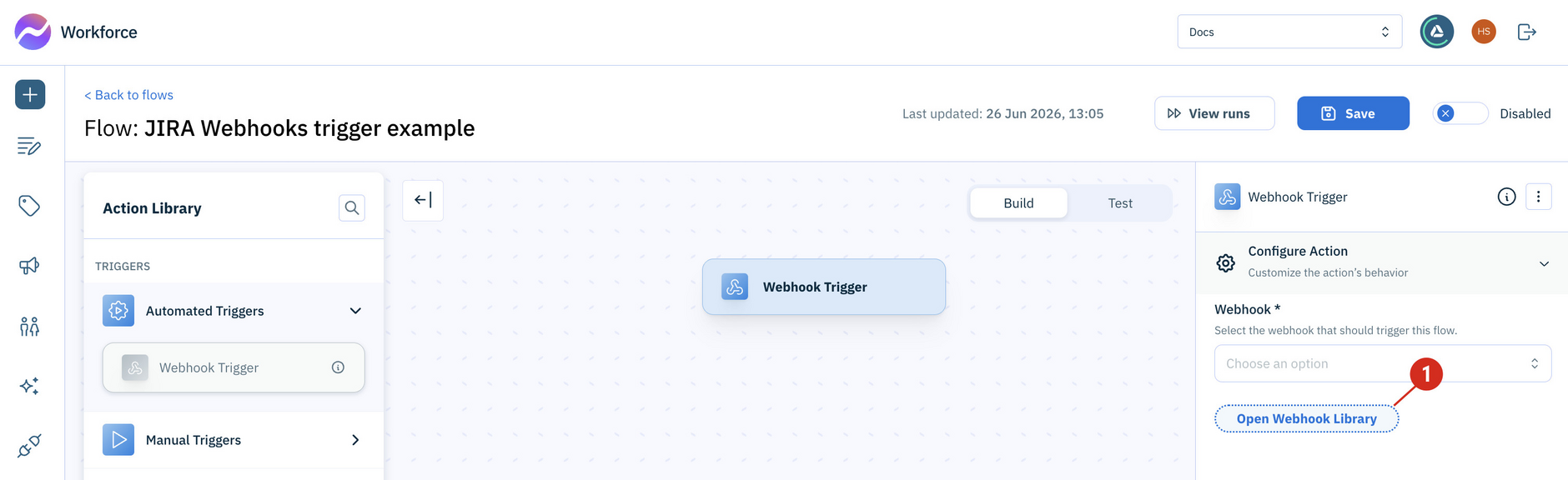

Open the Triggers section from the action library

  • Choose Open webhook library from the action configuration panel. You can leave authorization turned off and keep the schema as the default.

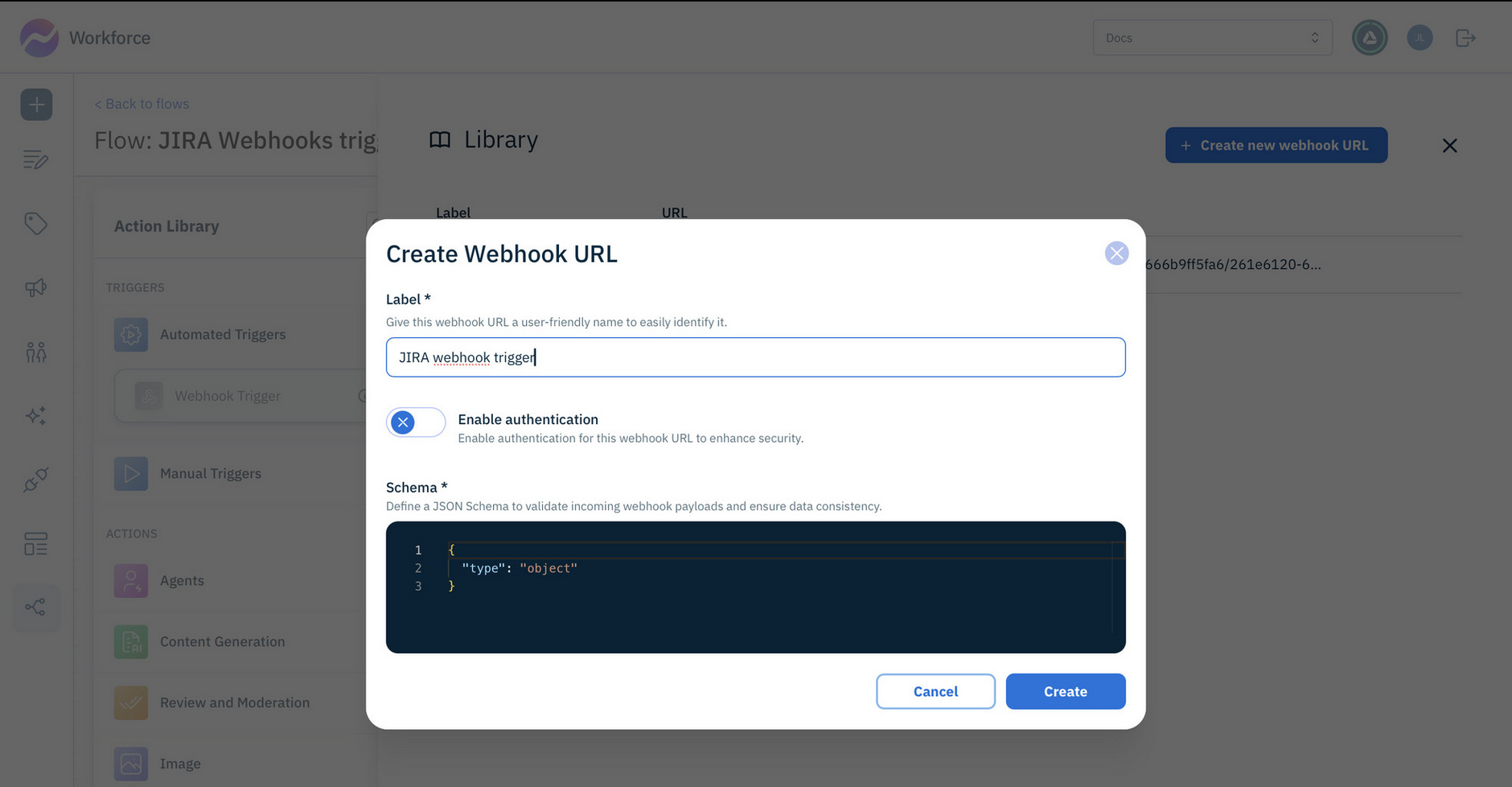

Creating the webhook URL

  • The new webhook is displayed in your webhook library. Copy the webhook URL because you will need it when setting up the webhook trigger in JIRA.

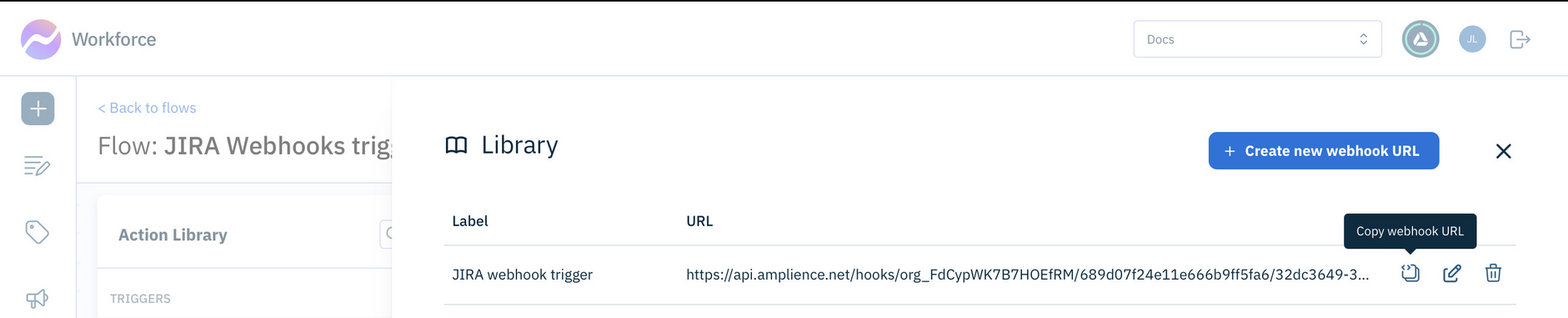

The new webhook is shown in the list. Copy the webhook URL because you will need it later

  • In the action menu choose the webhook you just created as the webhook that will trigger this flow.

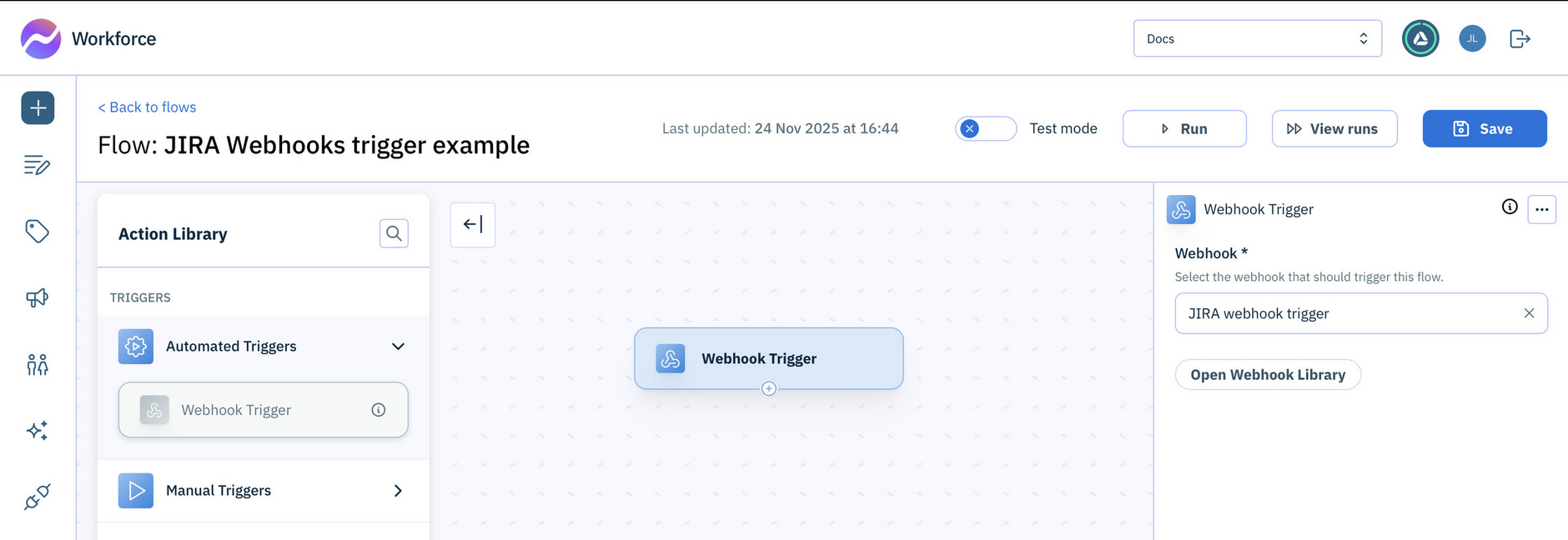

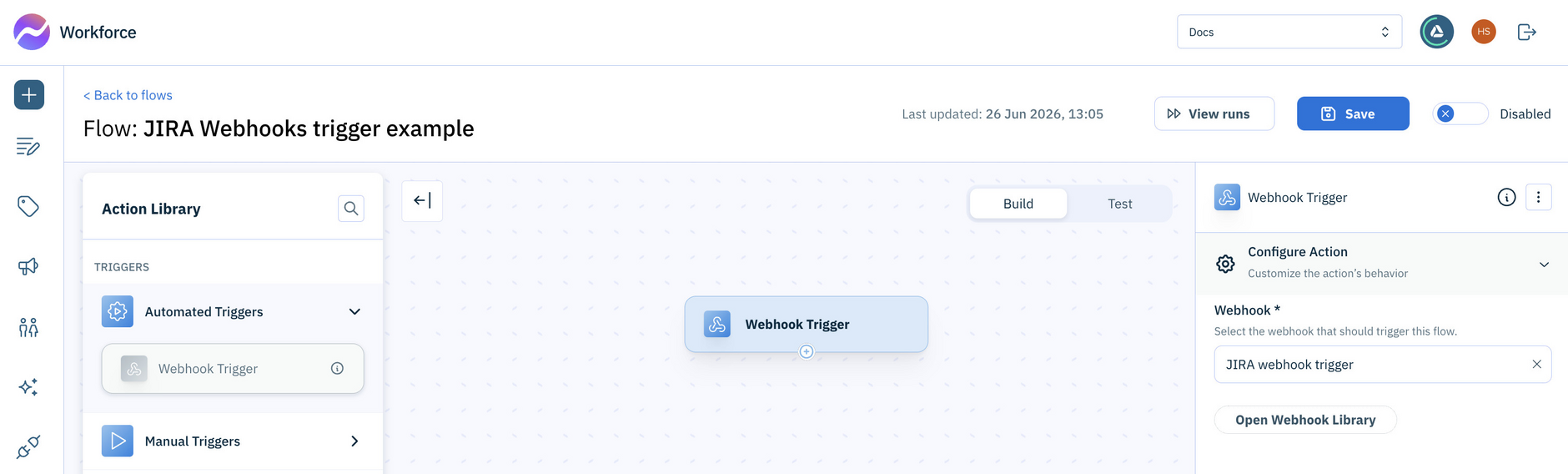

Choosing the webhook to trigger the flow

Step 2: Add actions to your flow
Link copied!

Add the following actions to your flow:

  • Convert to JSON string. This will convert the webhook payload to a JSON string. Connect this action to the webhook trigger.
  • Chat output. Use this to output the JSON as a chat message. Connect this action to the Convert to JSON string action.

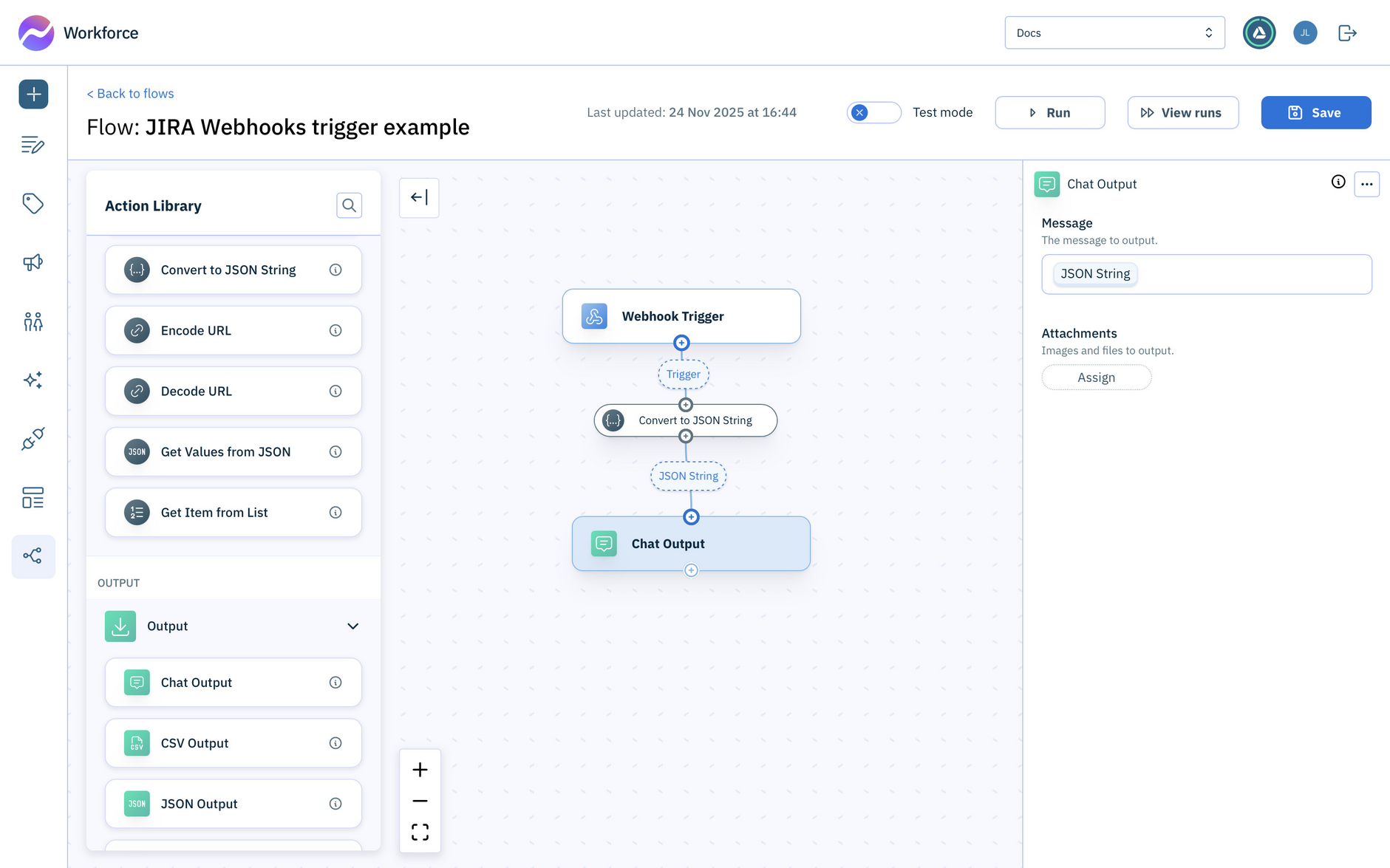

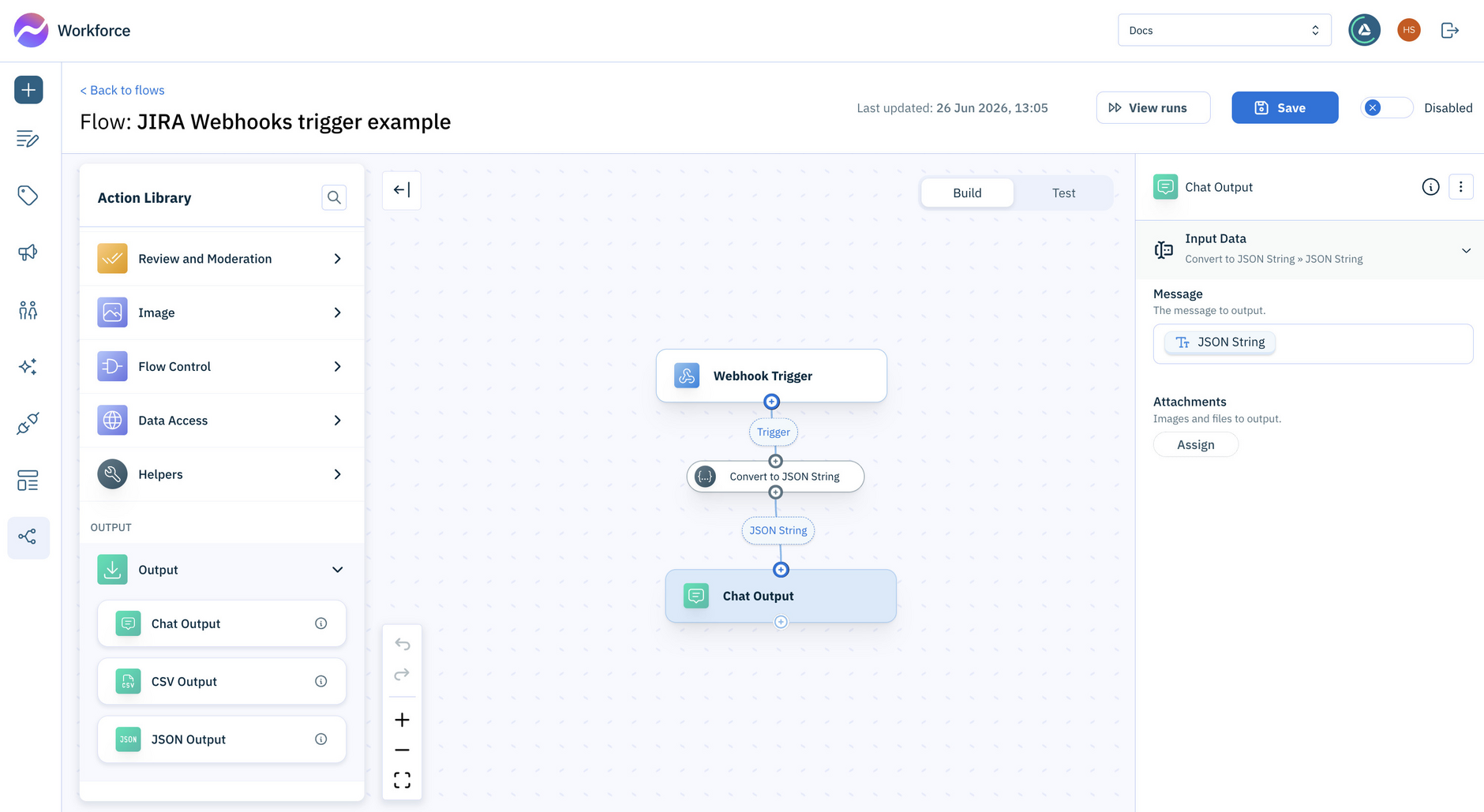

Add actions to your flow to output the webhook payload

Step 3: Creating a webhook in JIRA
Link copied!

You will need to have JIRA admin permissions to set up a webhook. In JIRA:

  • Go to admin settings -> System -> Webhooks and choose "Create a Webhook".
  • Enter the URL of the webhook you created in the previous step as the webhook URL. The URL should start with https//:api.amplience.net/hooks.
  • Choose the actions that you want to trigger the webhook, such as create or update issue.
  • Create the webhook.

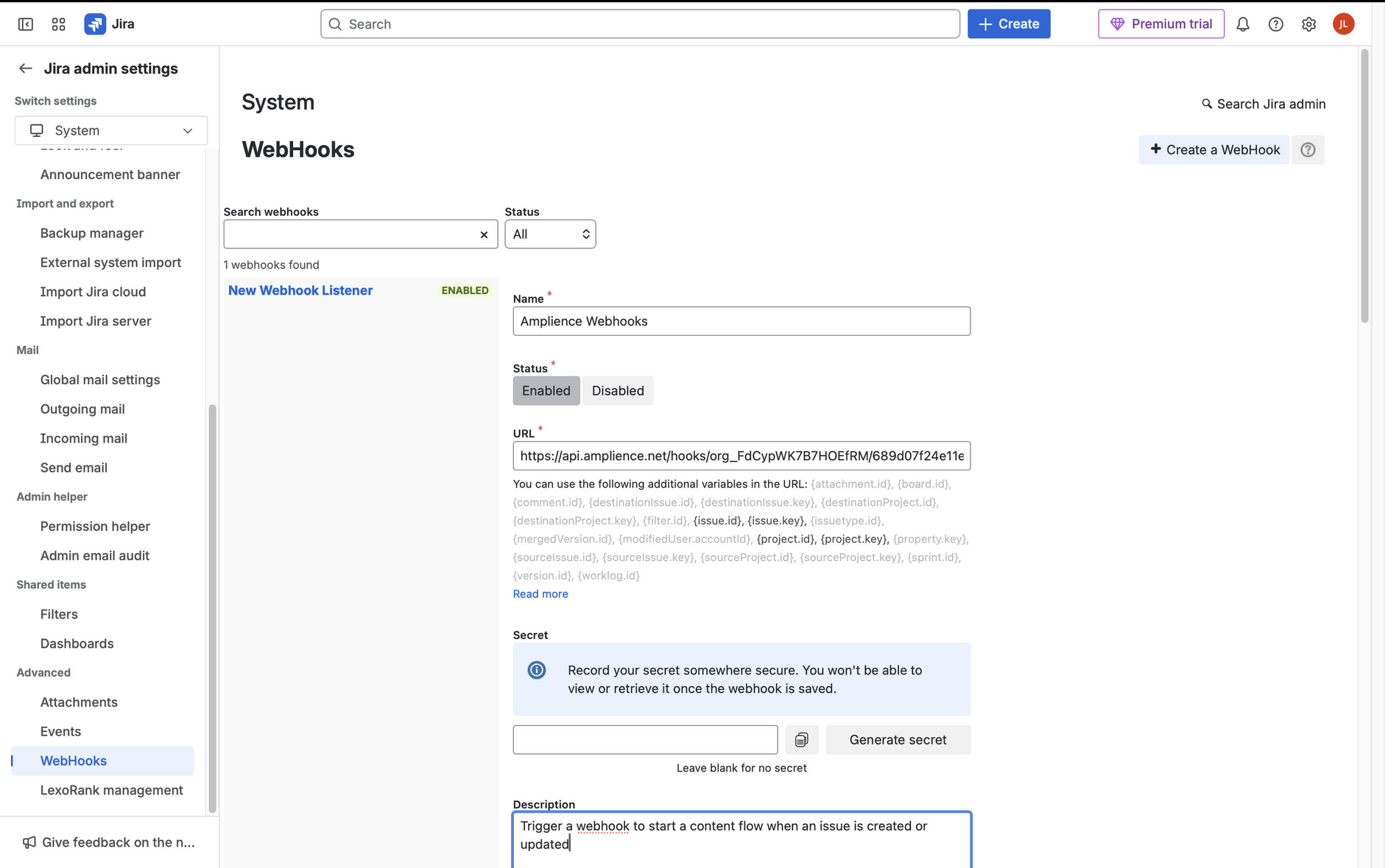

Creating the webhook in JIRA

Try it out
Link copied!

  • To test the flow, perform an action in JIRA that will trigger the webhook, such as creating or updating an issue.
  • Navigate back to Workforce. If the webhook is triggered, a run of your content flow will start automatically and be shown in your runs list.

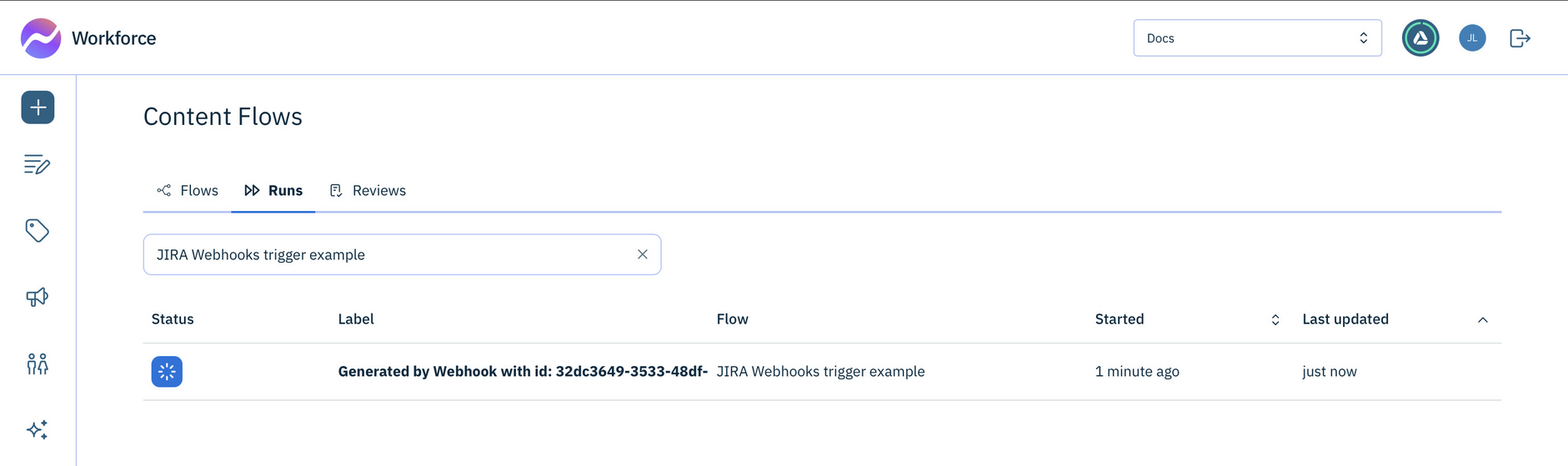

The webhook is triggered and the flow is run. The new run is shown in the runs list

  • Click on the run in the runs list to view it. The run will be opened and you can see the payload of the JIRA webhook.

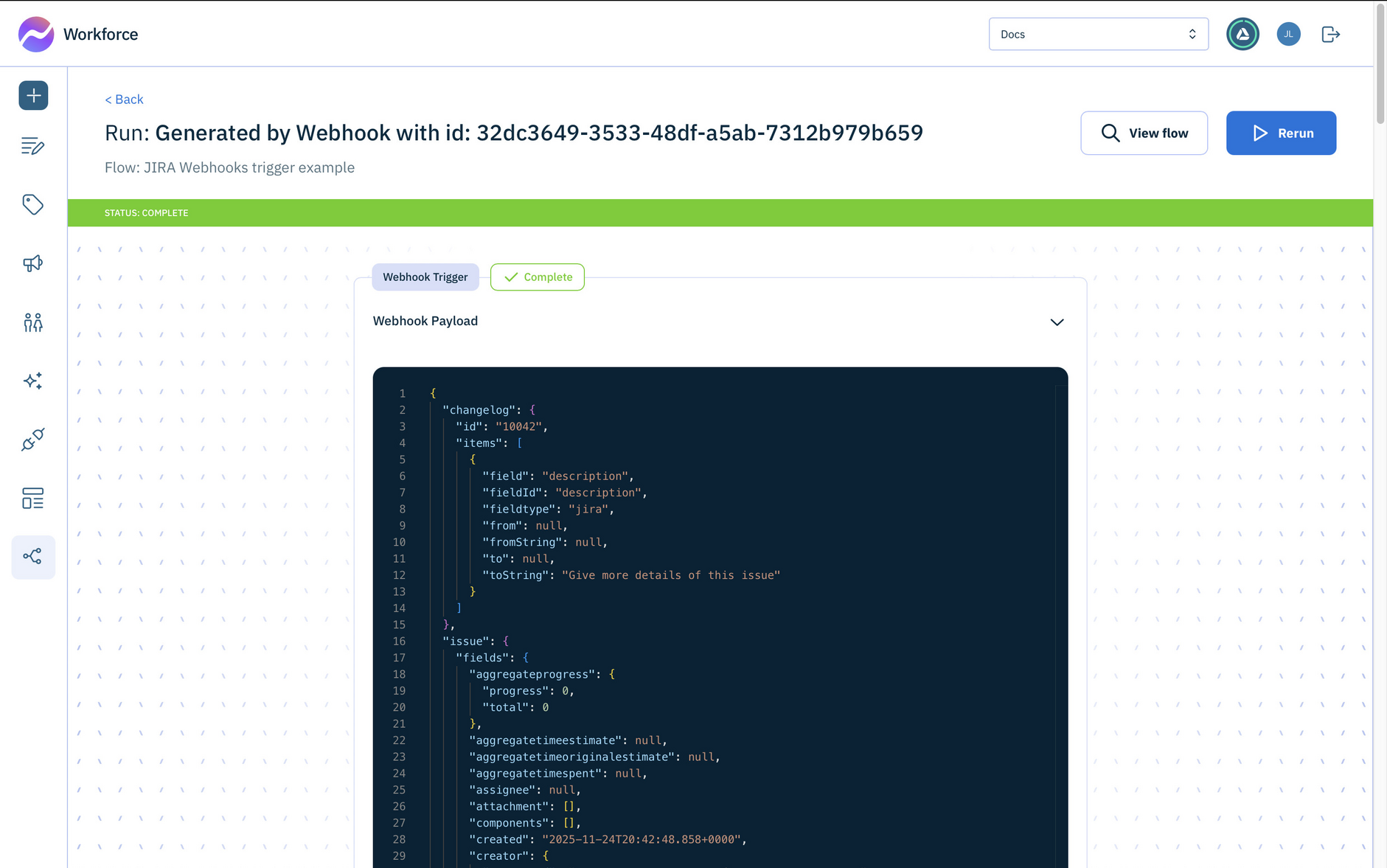

Viewing the run. The payload of the JIRA webhook is displayed

Testing the flow

You can run the flow in test mode, you just need to enter a sample webhook payload.
